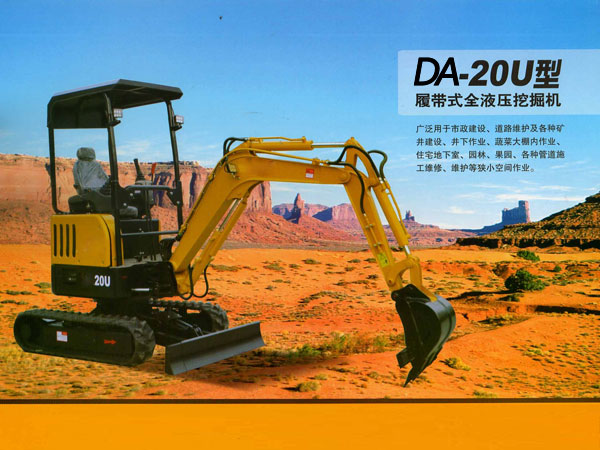

DA-20U型履帶式全液壓挖掘機
工作范圍 Operating range | ||
挖掘深度Maximum digging depth | mm | 2320 |
挖掘高度Maximum diggng height | mm | 3720 |
卸載高度 Maximum unloading height | mm | 2260 |
回轉半徑Minimum swing radius | mm | 1850 |
挖掘半徑Maximum digging radius | mm | 3600 |
性能參數Parameter | ||
整機重量Weight | kg 2000 | |
發動機型號Engine model | 進口洋馬/萊動KM385 | |
標準鏟斗容量Bucket capacity | m3 | 0.07 |
工作壓力 Working pressure | MPa | 16 |
接地比壓 Ground specific pressure | KPa | 32 |
回轉速度Rotary speed | rpm | 12 |
行走速度Walking speed | km/h | 2.7 |
爬坡能力Climbing ability | ° | <30 |
外形尺寸Dimensions | ||
全車總寬Width | mm | 1320 |
全車總高Height | mm | 2550 |
全車總長Length | mm | 4120 |
履帶寬度Track width | mm | 250 |
平臺離地間隙Platform ground clearance | mm | 235 |
